GZPK730H series High Speed Rotary Tablet Press, Product Description

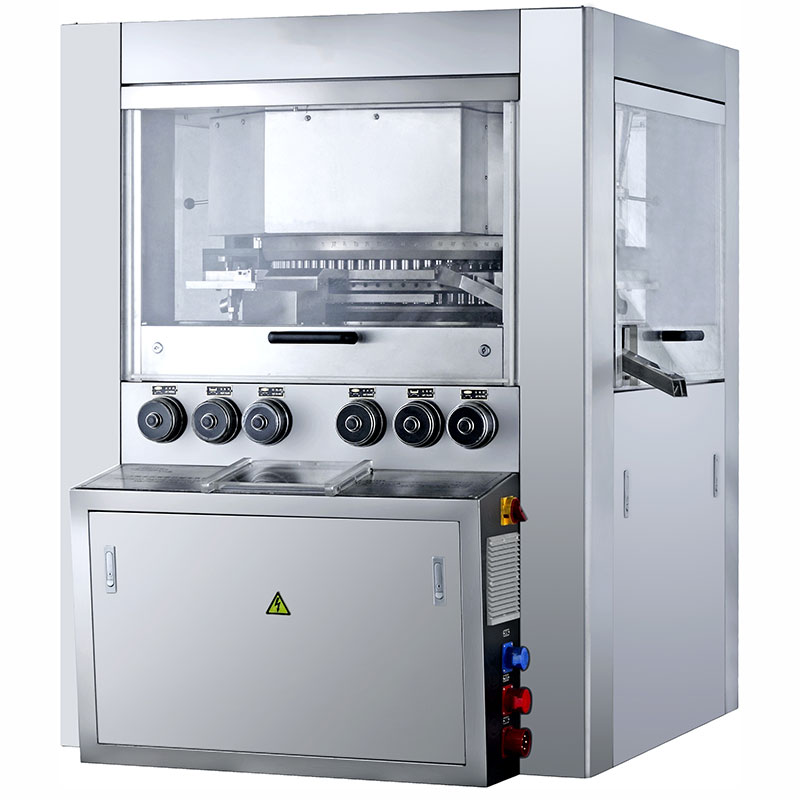

GZPK730H series High Speed Rotary Tablet Press

Application:

This machine is one kind of double side rotary tablet press machine, which can press granular materials into round shape tablet, irregular tablet or double-side engraved tablet. This machine is mainly used in pharmaceutical, chemistry, foodstuff, electronic industries.

Note:

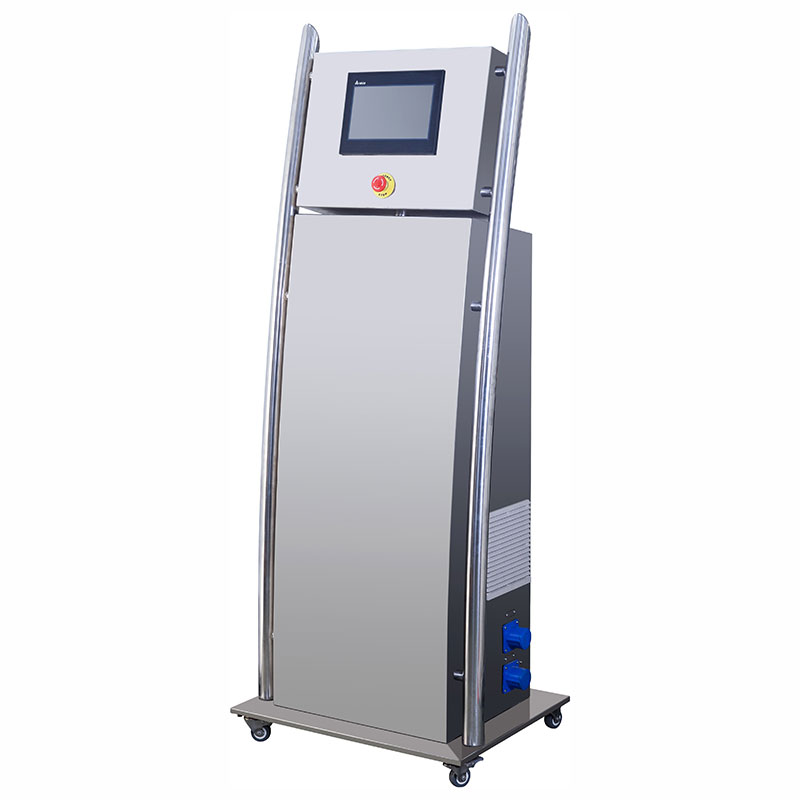

1. GZPK730H model adopts advanced operation system and tablet weight control system, adjust each operation parameter (main pressure, pre-pressure and filling depth) easily without hand wheel. Effective detecting and adjusting for tablet hardness and weight is achieved.
2. GZPK730H model can record all the process parameters for each production batch, it is convenient for operator to control the machine.
Feature:
1. High speed with large quantity punches, double press rollers, suitable for mass production.
2. Made of stainless steel, the housing is fully closed. The surface of the rotary turret is covered with a hardened layer so that the turret surface is wear resistant. The machine conforms to GMP requirements.
3. Perfect tableting system, twice compression forming, reasonable framework with proper space and big pressure roller, machine performance is reliable and no tablet weight difference.
4. Compression compartment is entirely enclosed with transparent glass to prevent contamination.
5. Double impeller type force feeder, improve granules flow-ability and filling performance, ensure the filling precision.
6. Tooling track adopt double-side lifting structure, the punches are balanced stress and wear resistance.
7. High performance electrical control system, ensure each program processing precisely.
8. Automatic oil & grease central lubrication system, ensure the lubrication of pressure rollers, toolings and tracks, extending the working life of the machine.

GZPK730 series High Speed Rotary Tablet Press

GZP730H series High Speed Rotary Tablet Press

GZPK730H series High Speed Rotary Tablet Press, Technical Parameters

Model
GZP(K)-51
GZP(K)-63
GZP(K)-75
GZP(K)-81
Number of Stations
51
63
75
81
Tooling Standard
D
B
BB
BBS
Max Main Pressure (KN)
100
Max Pre-pressure (KN)
100
round tablet
25
18
13
11
Max Tablet Diameter (mm)
irregular tablet
25
19
16
13
Max Filling Depth (mm)
20
18
15
15
Max Tablet Thickness (mm)
8
7
6
6
Max Turret Speed (r/min)
70
Max Production Capacity (pcs/h)
428400
529200
630000
680400
Motor Power (kw)
15
Overall Size (mm)
1780×1660×1920
Machine Weight (kg)
4800
