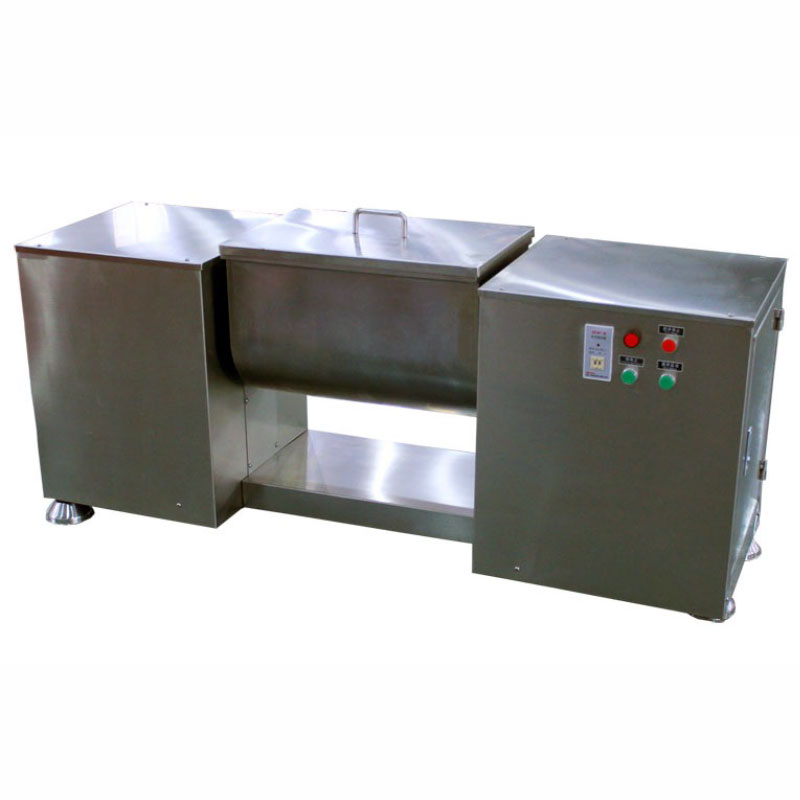

CH series Tank Type Mixer, Product Description

CH series Tank Type mixer, as a whole stainless horizontal tank type mixer, this machine is widely used for mixing of powdery or paste material in pharmaceutical chemical and foodstuff industries.
Working Principle:
S type agitating paddle is rotated, through mechanical driving, which pushes the material turn repeatedly and mix uniformly. Operate with electrical control, it can set mixing time to realize automatic stop and electric discharge upon expiration, thus improving the mix quality of each batch of material and realizing the high homogeneous mixing.

CH series Tank Type Mixer, Technical Parameters
ITEM TYPE
CH10 CH50 CH100 CH150 CH200
Trough Capacity( L) 10 50 100 150 200
Main Arm Speed (r/min) 25 24 24 24 24
Tilting Angle of the Trough 105 105 105 105 105
Main Motor( KW) 0.37 1.5 2.2 3 3
Tilting motor (KW) by hand
Overall Dimension (mm) 550*250*540 1200*520*1000 1480*685*1125 1480*685*1125 1660*600*1190
Weight( kg) 65 200 350 850 850
