ZH100 Automatic Cartoning Machine, Product Description

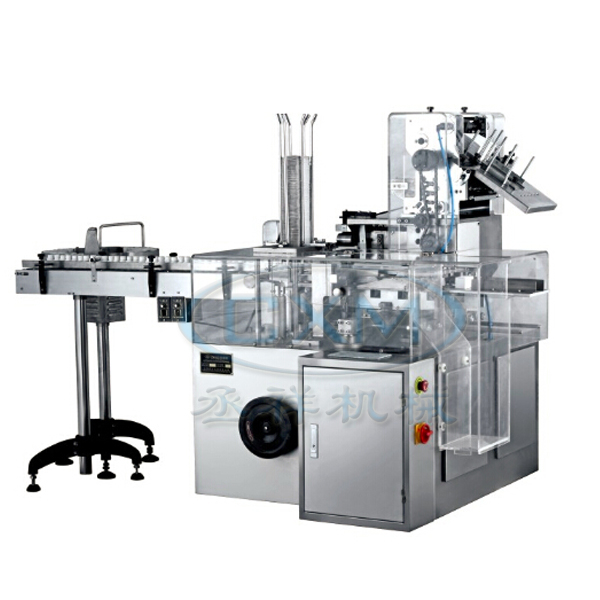

ZH100 Automatic Cartoning Machine
Application:
ZH100 Automatic Cartoning Machine is suitable for pharmaceutical, food, cosmetic or other industry. Various kind of encased matter can be used in this machine, such as blister cardboard, bottle, pillow bag or gusseted bag, injection, suppository, aluminum-aluminum blister, eye-drop, chewing gum, lipstick and so on.
The machine has been already used in several countries, such as Algeria, Malaysia, Mexico, Pakistan, Russia, Singapore, Syria, Ukraine and so on.
The machine features convenience in operation, running at a high speed, and having a good performance.
Features:
1. Adopt PLC and Touch Screen operation interface, which can realize man-machine dialogue.
2. All of the electric parts are imported from foreign countries, the pneumatic parts are selected the German “FESTO” brand.
3. The service life of cam is long because its surface is special handled, the cam is designed double sides pressure.
4. Adopt the unique automatic oil lubrication system, which is very advanced in domestic.
5. When overload occurs, the machine can be automatically stopped to keep the machine safe.
6. It can be encased each special size blister package, pillow package (AL-AL), bottle, injection product, oral liquid, suppository, lipstick, cachou, soft AL-Al package, soft encapsule package etc.
7. The leaflet can be automatic folded and inserted into the box, and the batch number can be automatically printed on the box.

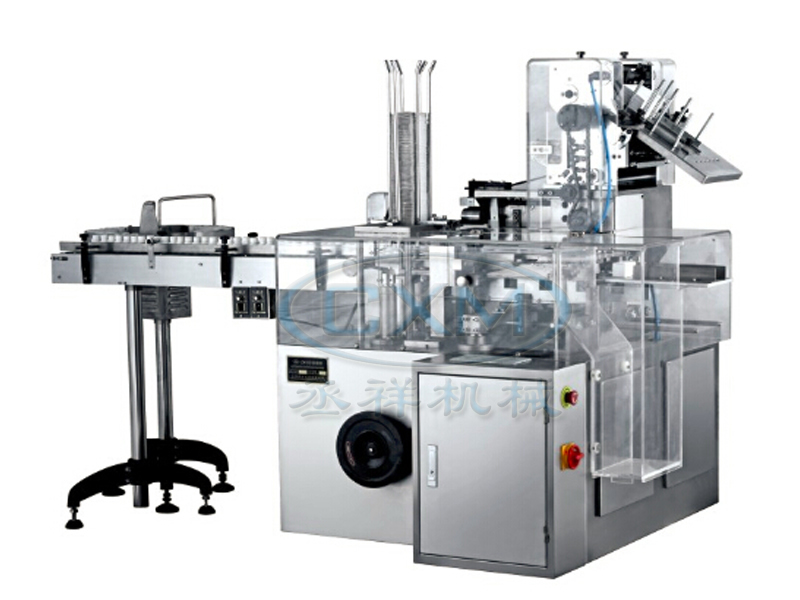

ZH100 Automatic Cartoning Machine

ZH100 Automatic Cartoning Machine, Technical Parameters

Model
ZH100
Packing Speed
60-100 cartons/min
Size of Carton Box (L*W*H)
(40-155)*(20-95)*(10-56)mm
Total Length of Carton Board
<290mm
Quality of Carton box
250-350 g/m2
Max size of the leaflet paper(L*W)
210*290 mm
Min size of leaflet paper (L*W)
70*90mm
Quality of Leaflet
60-70 g/m2
Pressure of Compressed Air
0.5-0.7 Mpa
Air Consumption
120-160 L/min
Working Noise
≤80dB
Machine Power
0.75KW
Power Supply
380V 50Hz 3 Ph
